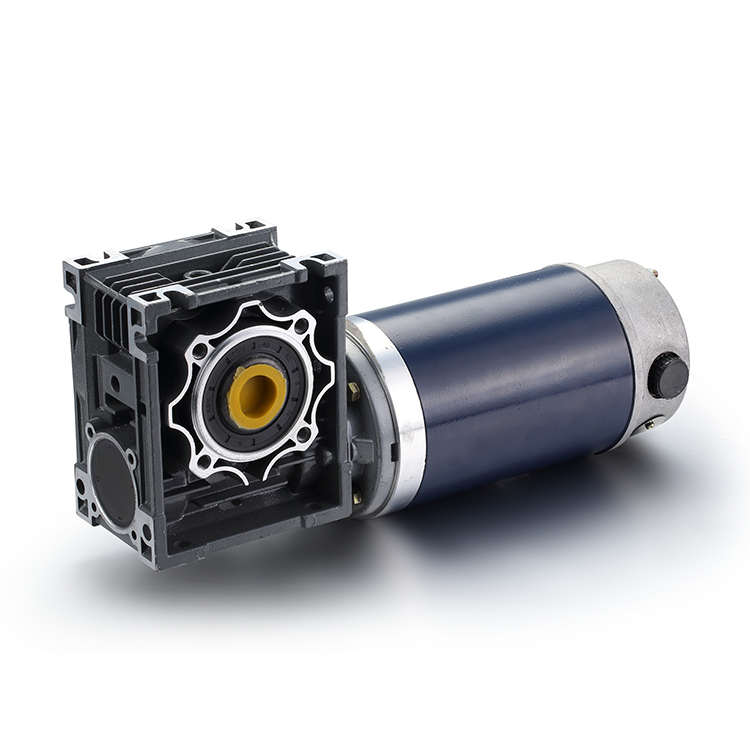

BG 110mm Brushed DC Motor With RV Gear |
|
| Operating temperature | -20℃~50℃ |
| Rotation direction | CW/CCW |
| Noise | ≤75dB |
| Work condition | S1 |
| Number Of Phases | / |
| Insulation class | B-H |
| Protection class | IP40 |
| Electrical Specifications | |||||||||
| Model | RATED LOAD | NO LOAD | STALL | ||||||
| Voltage | Power | Speed | Torque | Current | Speed | Current | Torque | Current | |
| V | W | rpm | N.m | A | rpm | A | N.m | A | |
| BG 110ZYT172 | 24 | 185 | 1500 | 1.18 | 11 | 2100 | 2.2 | 3.53 | 33 |
| BG 110ZYT188 | 48 | 245 | 3000 | 0.46 | 4.32 | 4000 | 0.86 | 1.38 | 13 |
| BG 110ZYT218 | 220 | 400 | 1500 | 2.55 | 2.6 | 2000 | 0.52 | 7.64 | 7.8 |
| We can also customize products according to customer requirements. | |||||||||
| RV Gear Motor Technical Data-BG | ||||||||
| Ratio | 10 | 15 | 20 | 30 | 40 | 50 | 80 | 100 |
| Rated speed(rpm) | 150 | 100 | 75 | 50 | 37.5 | 30 | 18.75 | 15 |
| Rated torque(N.m) | 13 | 19.5 | 26 | 39 | 51.9 | 64.9 | 103.9 | 130 |
